Taizhou Kayond Machinery Co., Ltd
| Số lượng đặt hàng tối thiểu: | 1 |
|---|---|
| Giá bán: | 1680 |
| Mẫu số: | CDDW1530 | chiều cao tải: | 1600-3000mm |
|---|---|---|---|
| Chiều rộng của nĩa: | 550/680mm/tùy chỉnh | Độ dài nĩa: | 1070mm/tùy chỉnh |
| Tổng trọng lượng: | 500.000kg | Nguồn điện: | Động cơ DC |
| Tải trọng: | 1000/1500kg | Trung tâm tải: | 500 mm |
| Nâng chiều cao: | 1600/2000/2500/3000/4000 mm | tốc độ lái xe: | 5,0 mm/s |
| Tốc độ nâng: | 140/135 mm/s | Tốc độ giảm dần: | 150/155 mm/s |
| Độ dốc tối đa: | 7/5 ° | Động cơ lái: | DC/0,75 kW |
| Động cơ nâng: | DC/2,2 kW | ||
| Làm nổi bật: | Night Lighting Electric Pallet Stacker,Speakers Walkie Stacker,Customizable Fork Width Electric Stacker |
||

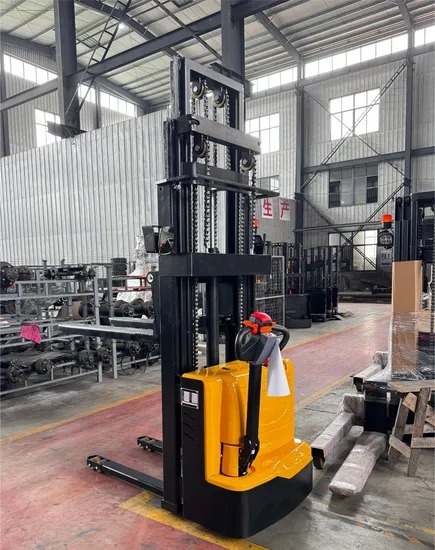

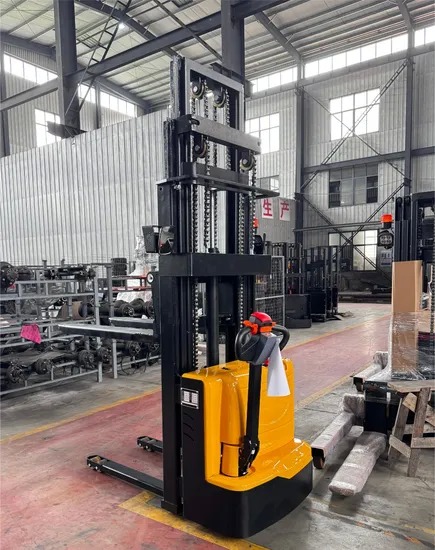

This walkie stacker features intuitive operation requiring minimal training, making it suitable for diverse workforce applications. Its compact design enables exceptional maneuverability in confined warehouse and factory spaces. Enhanced safety features include emergency brakes, speed limiters, and anti-slip functions for operator protection. The walk-behind operation provides superior vehicle control, significantly reducing accident risks.
| MODEL: CDDW10 CDDW15 | ||||
|---|---|---|---|---|
| Features | Drive system | Battery | ||
| Driving mode | Walkie | |||
| Load Capacity | Q | KG | 1000 | |
| Load Center | C | MM | 500 | |
| Weight | Weight (With battery) | KG | ||
| 480/495/515/535 | ||||
| Wheels | Material | PU | ||
| Size | Lifting Height | H3 | MM | |
| 1600/2000/2500/3000/4000 | ||||
| Lowest Mast | H1 | MM | ||
| 2080/1580/1830/2080/1580 | ||||
| Max.Height when operating | H4 | MM | ||
| 2080/2730/3230/3730/4750 | ||||
| Min.Height of Fork | H13 | MM | ≤90 | |
| Length | L1 | MM | 1770 | |
| Width | B1 | MM | 850 | |
| Fork Length | L | MM | 1070 | |
| Wheelbase | Y | MM | 1250 | |
| Fork Outside Width | B5 | MM | 680 | |
| Fork Inside Width | MM | 305 | ||
| Min.Turning Radius | WA | MM | 1390 | |
| Performance | Driving Speed (Empty/Full Load) | MM/S | 5.0/5.0 | |
| Lifting Speed (Empty/Full Load) | MM/S | 140/135 | ||
| Descending Speed (Empty/Full Load) | MM/S | 150/155 | ||
| Max.Gradient (Empty/Full Load) | ° | 7/5 | ||
| Brake | Electromagnetic brake | |||
| Driving Motor | KW | DC/0.75 | ||
| Lifting Motor | KW | DC/2.2 | ||
| Battery | Capacity | V/Ah | 24/80/100;Li/gel | |
Brand: KAD
Domestic premium control handle with functional buttons for precise UP/DOWN and FORWARD/BACKWARD operation. Features Curtis brand accelerator for enhanced operational safety.
Essential illumination system for warehouses with inadequate lighting conditions.
Includes reverse rearview mirror and audible warning system - safety components often omitted by competitors for cost savings. Our stacker maintains competitive pricing while prioritizing operator safety.
High-strength 3-stage mast capable of supporting heavy loads at heights up to 4-4.5 meters.
A: Standard packaging includes paper wrapping and iron pallets. Custom branded packaging available upon request with proper authorization.
A: Standard terms: 30% deposit via T/T, with 70% balance paid prior to shipment. Product and packaging photos provided before final payment. Alternative payment arrangements negotiable.
A: Available shipping terms include EXW, FOB, CFR, CIF, and DDU.
A: Typical lead time ranges from 5-30 days after deposit receipt, varying according to product specifications and order quantity.
A: Yes, we conduct 100% quality testing prior to shipment.
A: 1. We maintain consistent quality and competitive pricing to ensure customer satisfaction.
2. We value every business relationship, approaching all transactions with professionalism and integrity regardless of client location.
