Taizhou Kayond Machinery Co., Ltd
| Place of Origin: | Jiangsu, China |
|---|---|
| Hàng hiệu: | KAD |
| Minimum Order Quantity: | 1 |
| Giá bán: | $2,999-3,280 |
| Fork Length: | 1070/customize | Fork Width: | 550/685 |
|---|---|---|---|
| Drive Type: | FWD | Loading Capacity: | 1500kg |
| Load Center: | 500 mm | Lifting Height: | 3000-6000mm |
| Battery: | 24V/(210/280)Ah Lead Acid Battery | Weight: | 1750/1950/2190 kg |
| Min Lifting Height: | 35/40mm | Power Source: | DC MOTOR |
| Drive Motor Power: | 1.5 kW (AC) | Lift Motor Power: | 4.5 kW |
| Battery Voltage: | 24V | Battery Capacity: | 210/280 Ah |
| Noise Level: | <70 dB(A) | ||
| Làm nổi bật: | 1.5 ton electric reach stacker,electric pallet stacker with warranty,forklift with 3000-6000mm lift height |
||
| Attribute | Value |
|---|---|
| Condition | New |
| Fork Length | 1070mm (customizable) |
| Fork Width | 550mm/685mm |
| Drive Type | FWD |
| Loading Capacity | 1500kg |
| Load Center | 500mm |
| Lifting Height | 3000-6000mm |
| Battery | 24V/(210/280)Ah Lead Acid Battery |
| Warranty | 1 Year |

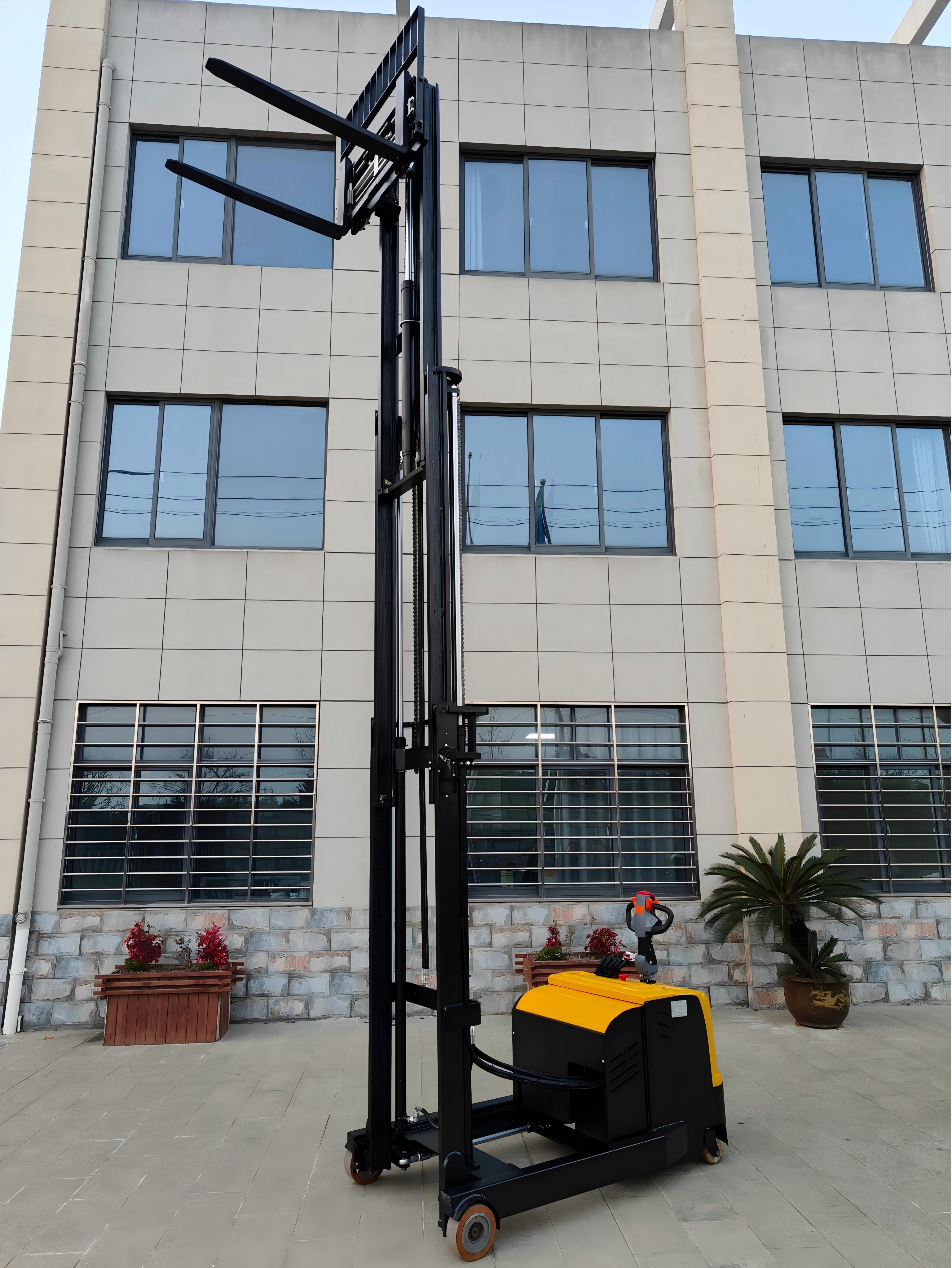

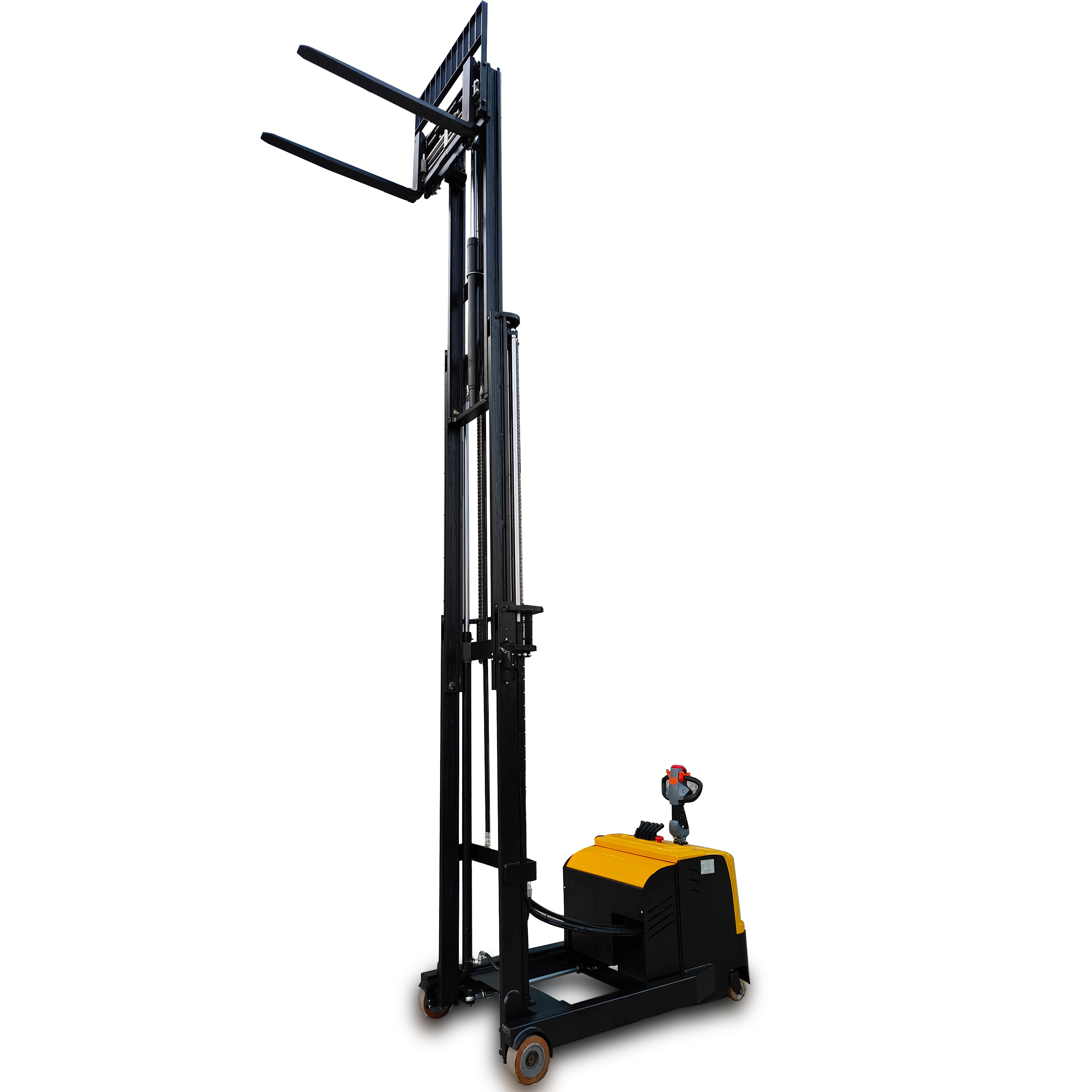

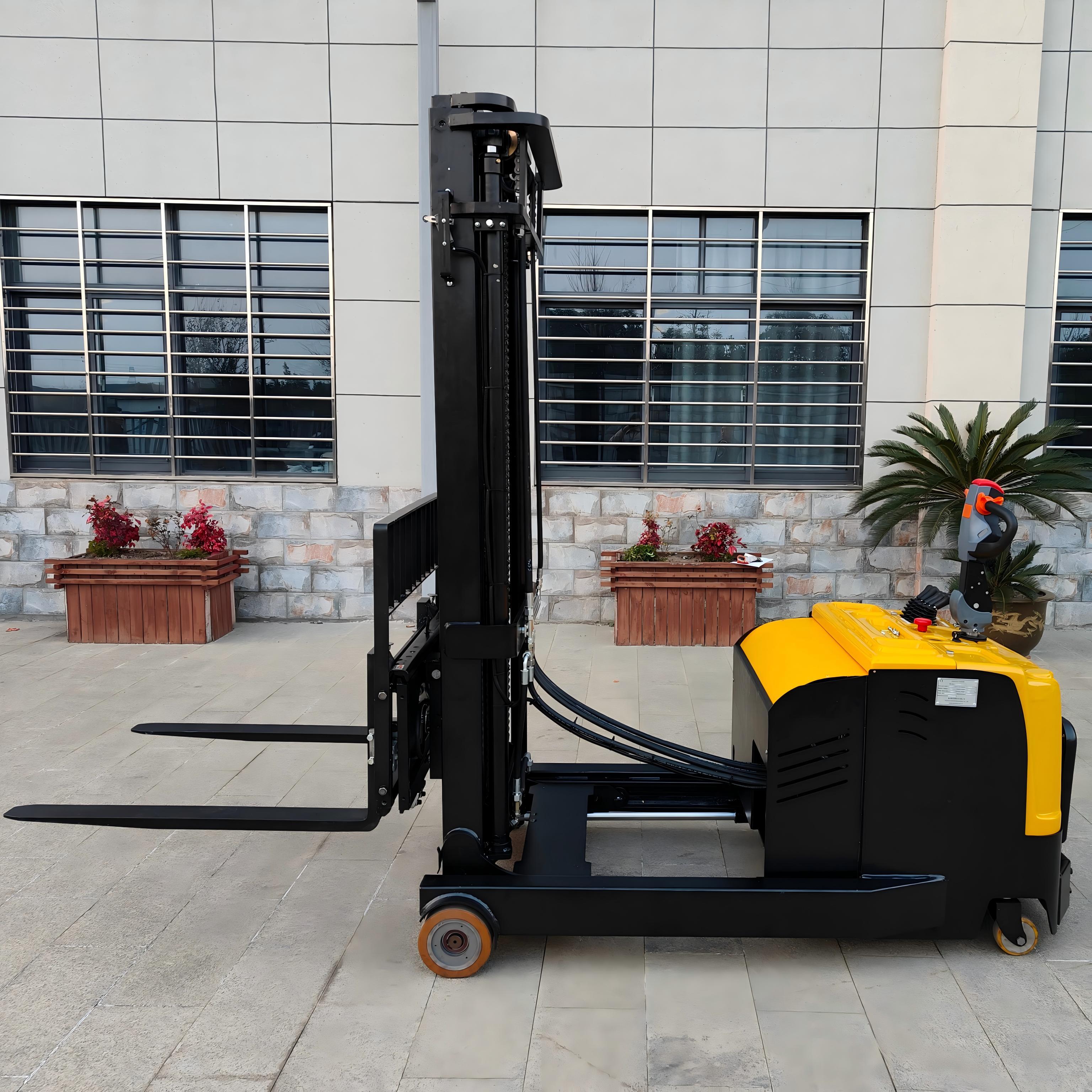

This fully electric reach stacker features a high-efficiency AC drive system and electronic power steering for strong performance and flexible operation, significantly reducing operator fatigue. Designed for modern material handling with enhanced safety and ergonomic features.
| Model | CQDA12/15/20 |
| Drive Type | Electric |
| Operation Type | Stand-on |
| Rated Load | 1200/1500/2000kg |
| Max Lifting Height | 2500-6000mm |
| Battery | 24V/(210/280)AH |

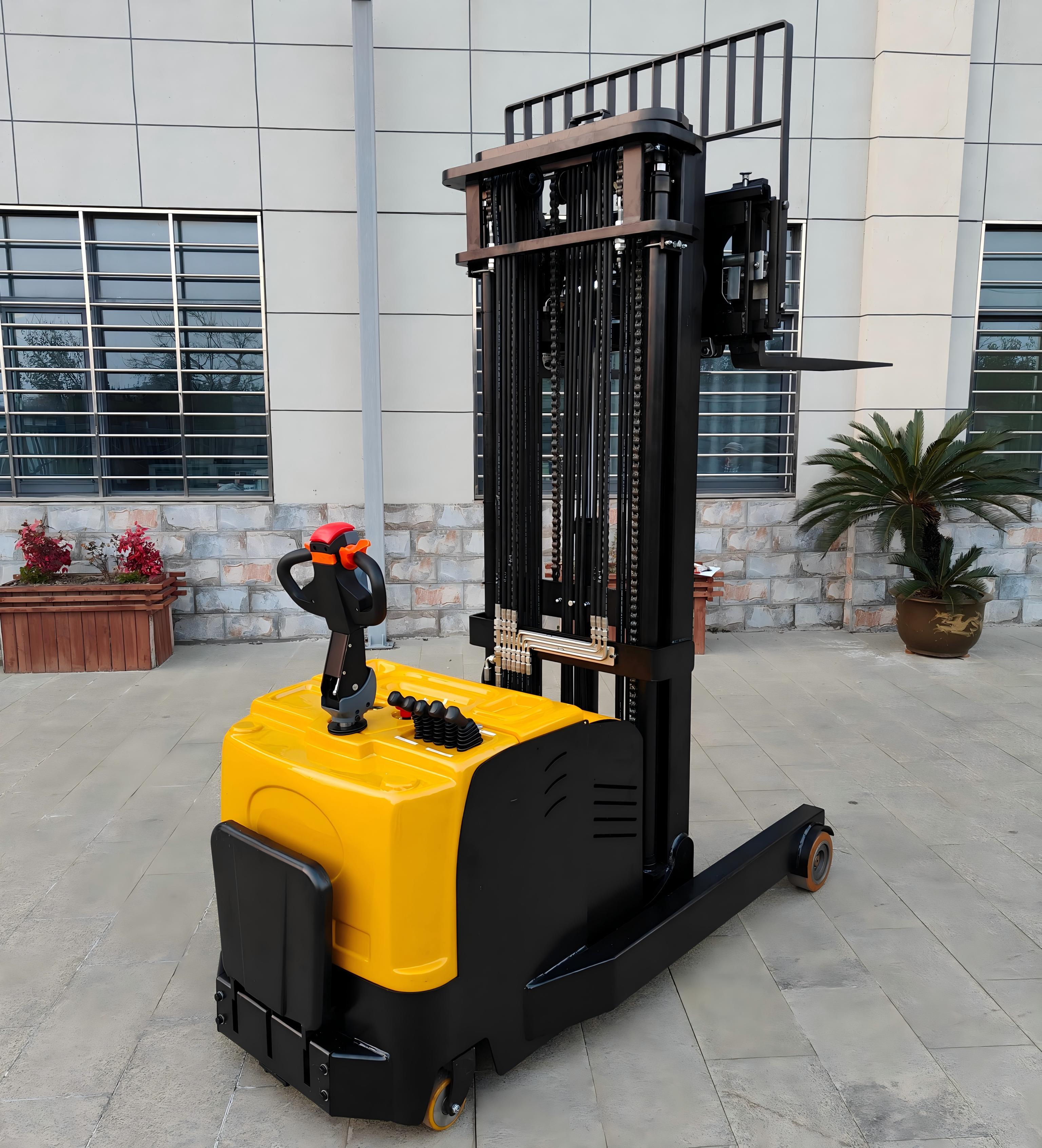

KAD brand domestic famous control handle with functional buttons for UP/DOWN, FORWARD/BACKWARD control. Features Curtis brand accelerator for safe operation.
Combined key, battery indicator, and emergency switch with functional panel design for easy operation.

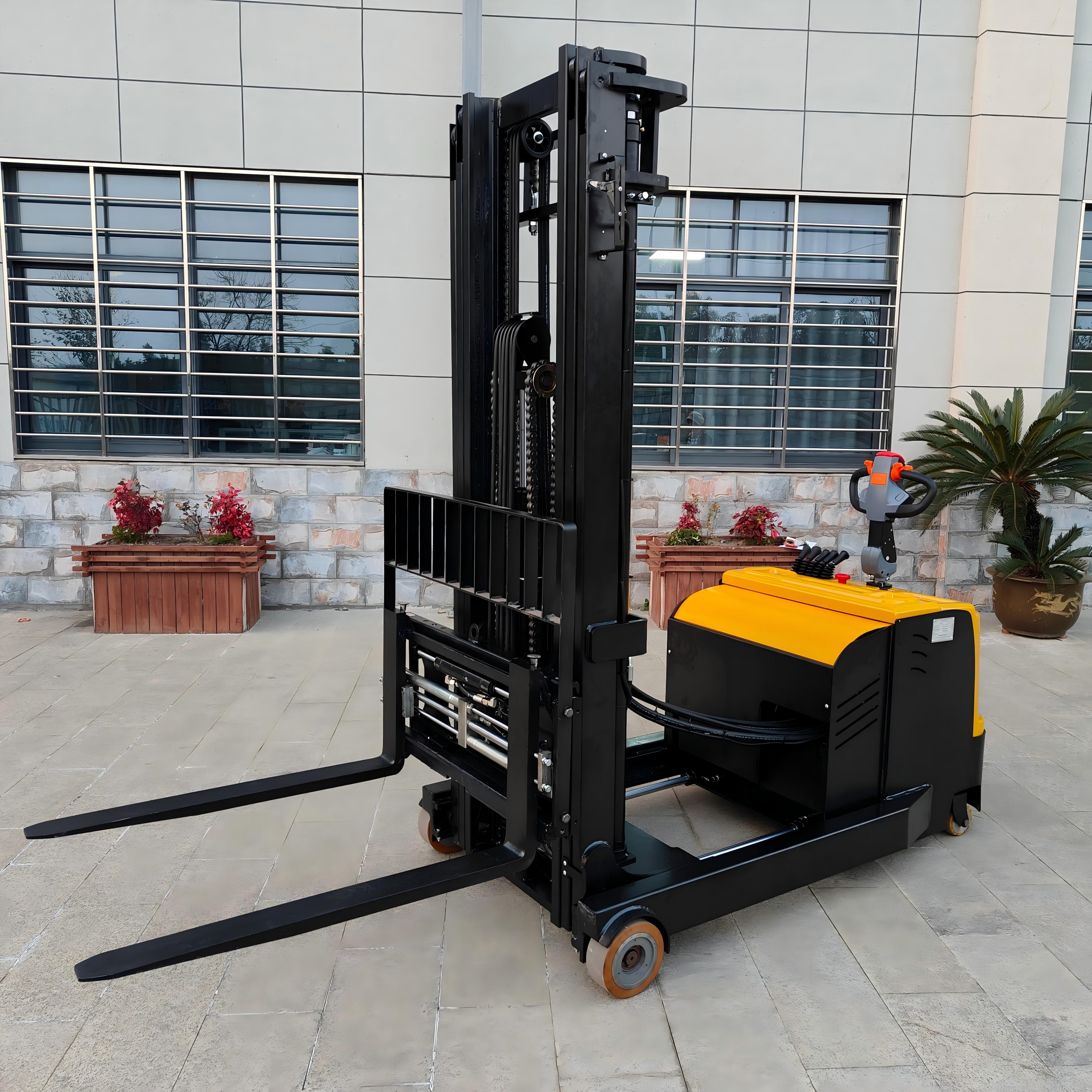

Strong cylinder and chain system for smooth fork operation. Available with 1-stage, 2-stage, or 3-stage mast options with reinforcement for heavy loads.
