Place of Origin: | Jiangsu,China |
---|---|
Hàng hiệu: | KAD |
Chứng nhận: | CE |
Model Number: | MX580S |
Số lượng đặt hàng tối thiểu: | 1 đơn vị |
Giá bán: | $3000-$3500/unit |
Packaging Details: | Iron pallet of Single Mast Aluminum Aerial Work Platform 8 Meters Vertical Lift |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Khả năng cung cấp: | 100 đơn vị / tháng |
Khả năng tải: | 230Kg | platform size: | 1.67m*0.74m |
---|---|---|---|
Max. lifting height: | 12m | Overall length: | 1810m |
Chiều rộng tổng thể: | 760MM | Màu sắc: | Yêu cầu của khách hàng |
Warranty: | 1 Year | After-sales service provided: | Overseas service center available,Video technical support,Free spare parts |
Application: | Widely,For workshops,logistics and transportation |

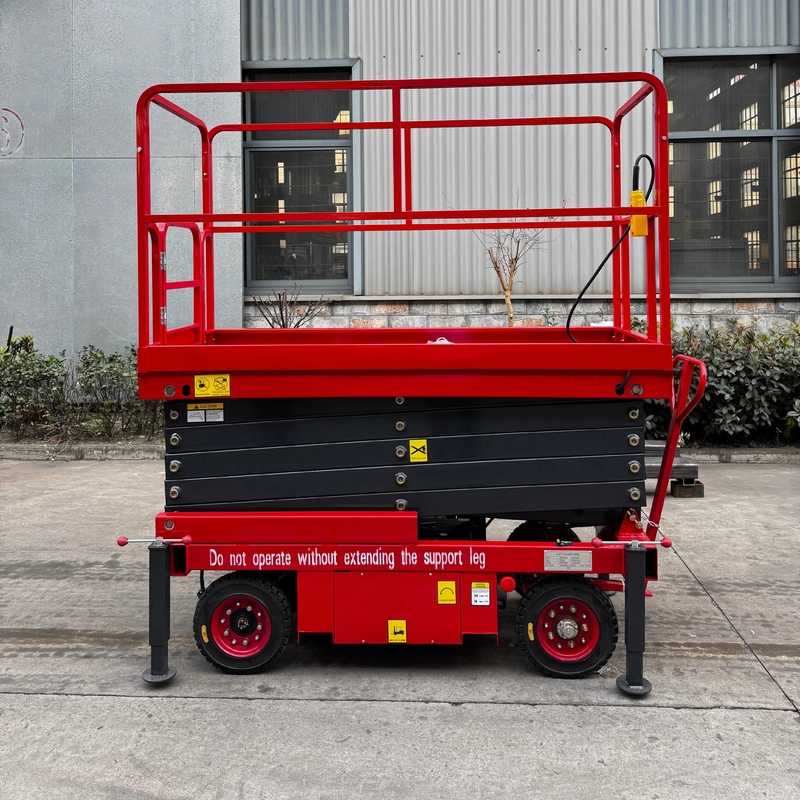

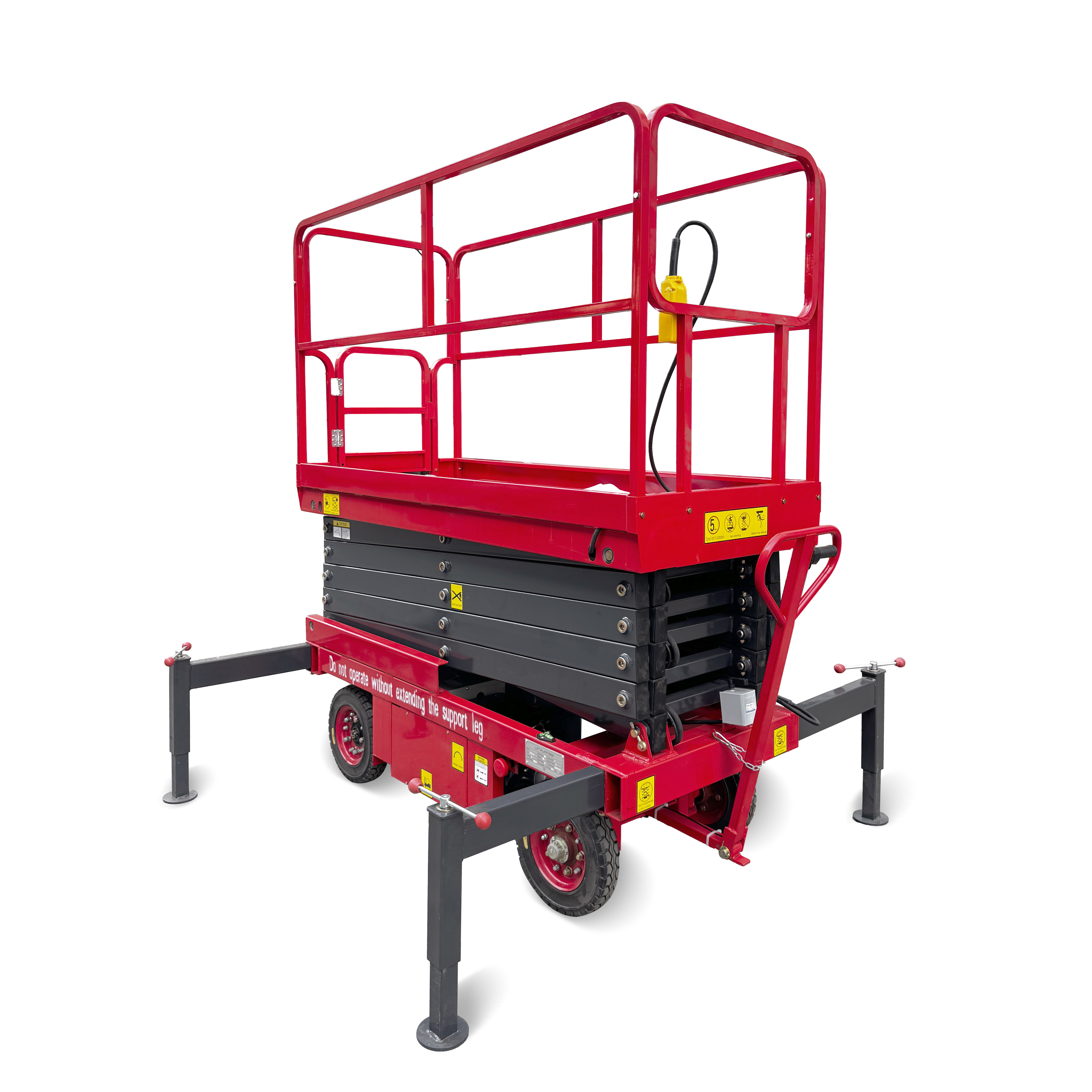

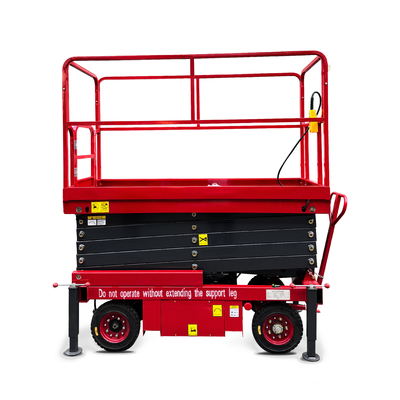

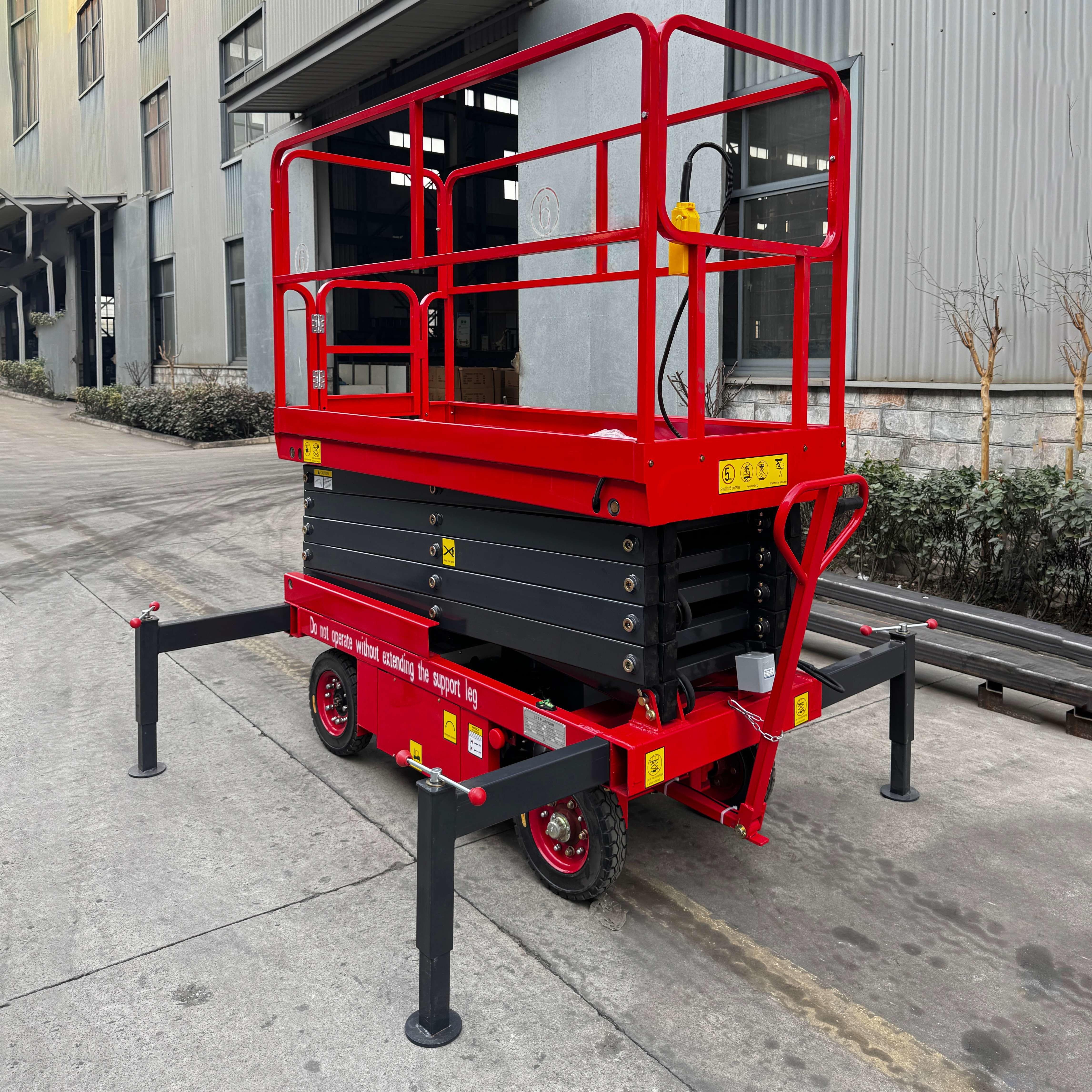

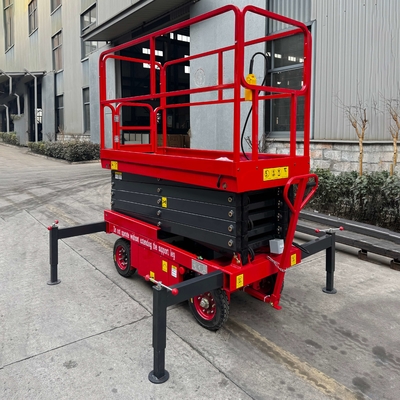

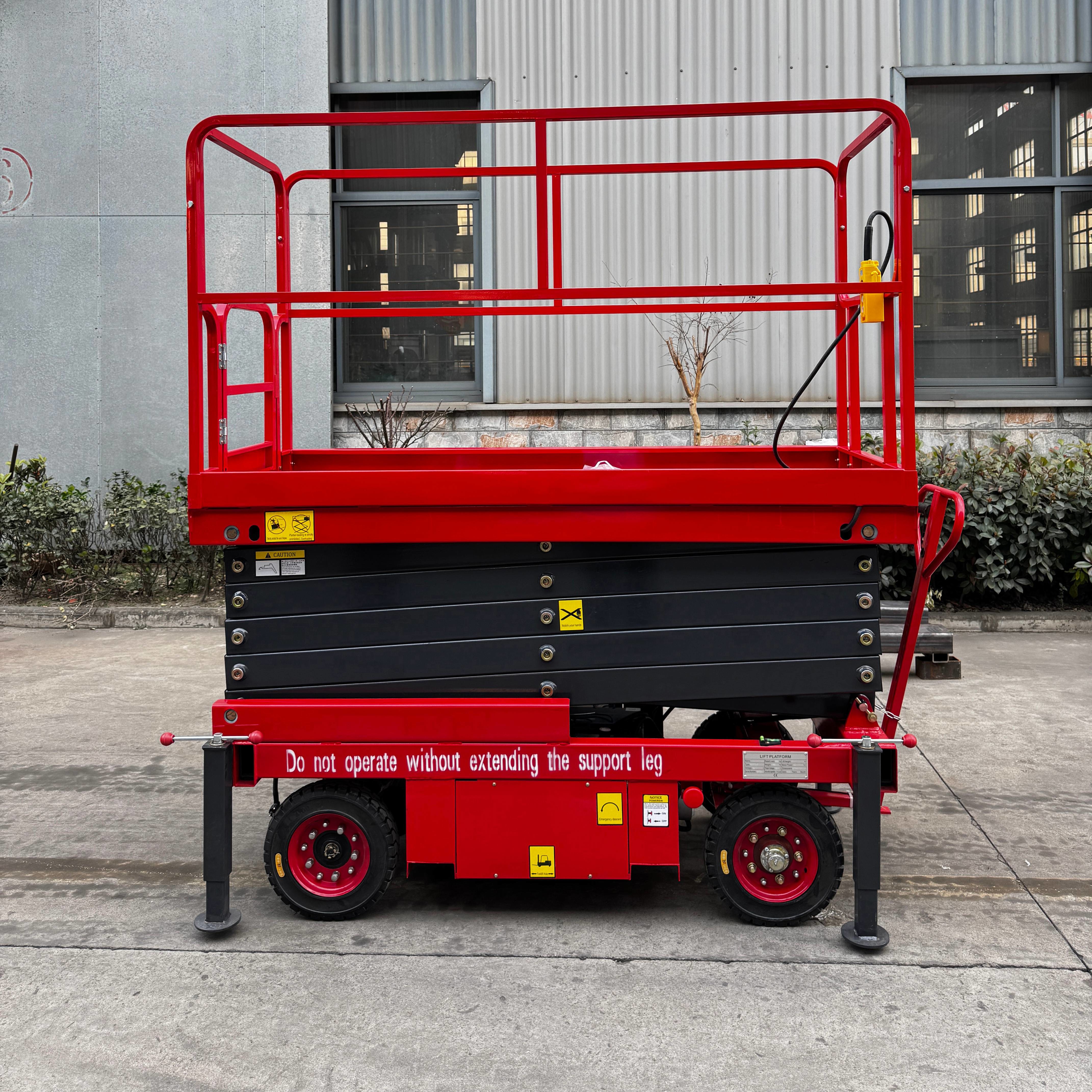

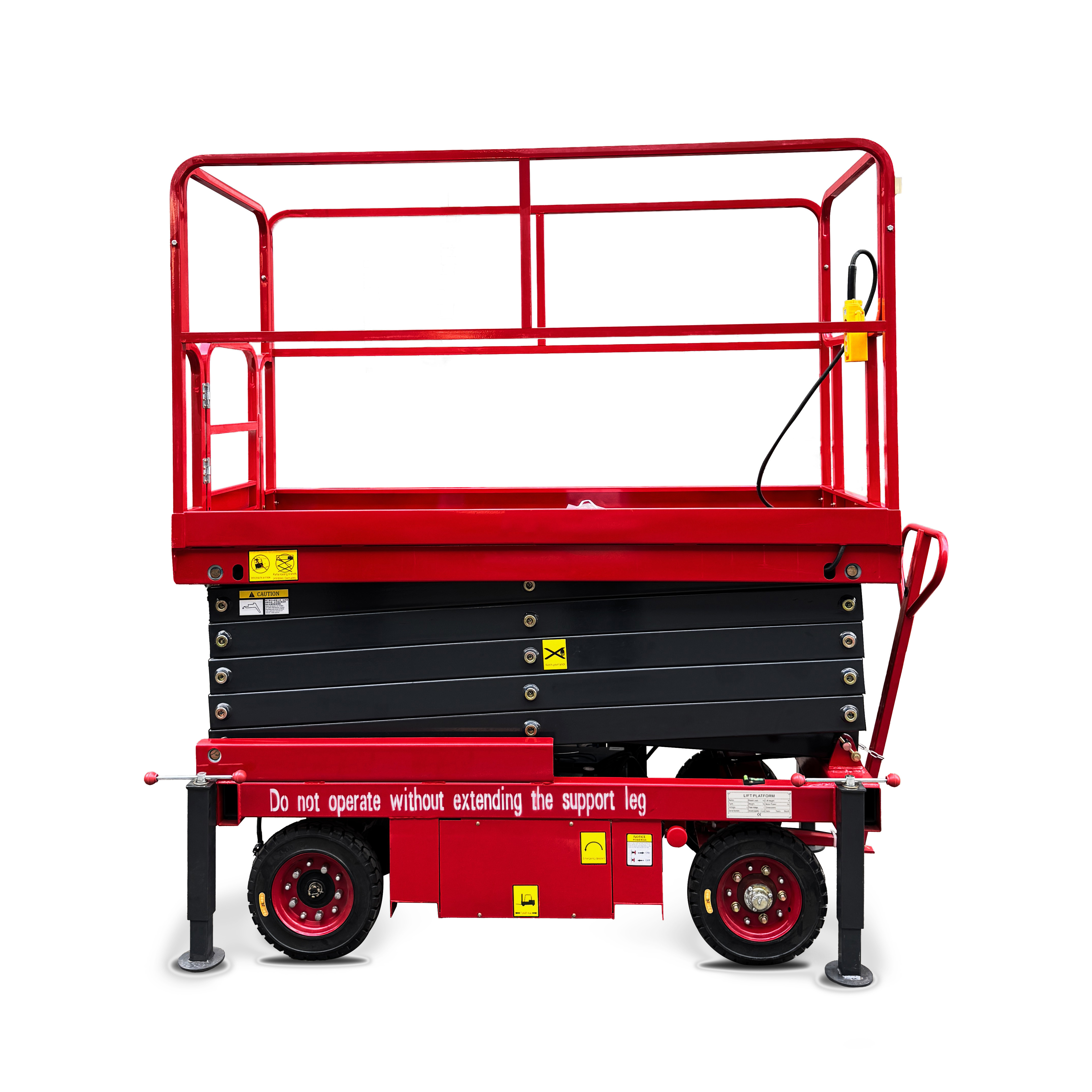

Mobile Hydraulic Scissor Lift Table Manual Push Platform Lifter
This mobile hydraulic scissor lift table is designed for smooth manual operation and easy mobility. Built for everyday industrial tasks, it features a robust hydraulic system and reinforced steel structure. Ideal for lifting and transporting materials in workshops, packing areas, and small warehouses, this platform lifter helps reduce strain and improve workflow efficiency. Its compact size makes it perfect for narrow spaces without sacrificing lifting capacity.
Model
|
MX580S
|
MX600SN
|
MX800SN
|
MX800S
|
MX1000S
|
MX1200S
|
S.W.L
|
230kg
|
230kg
|
230kg
|
450kg
|
320kg
|
320kg
|
S.W.L on Extension
|
113kg
|
113kg
|
113kg
|
113kg
|
113kg
|
113kg
|
Max.Workers Number
|
2
|
2
|
2
|
2
|
2
|
2
|
Working height max
|
7.8m
|
8m
|
10m
|
10m
|
12m
|
13.8m
|
Platform height max
|
5.8m
|
6m
|
8m
|
8m
|
10m
|
11.8m
|
Overall Length
|
1.81m
|
2.43m
|
2.43m
|
2.43m
|
2.43m
|
2.43m
|
Overall Width
|
0.76m
|
0.81m
|
0.81m
|
1.15m
|
1.15m
|
1.15m
|
Overall Height( Rails Up)
|
2.16m
|
2.18m
|
2.3m
|
2.31m
|
2.42m
|
2.55m
|
Overall Height( Rails Down)
|
1.82m
|
1.85m
|
1.87m
|
1.76m
|
1.91m
|
2.03m
|
Platform size(LxW)
|
1.67m*0.74m
|
2.27m*0.81m
|
2.27m*0.81m
|
2.27m*1.12m
|
2.27m*1.12m
|
2.27m*1.12m
|
Platform extension size
|
0.90m
|
0.90m
|
0.90m
|
0.90m
|
0.90m
|
0.90m
|
Ground Clearance ( Stowed)
|
0.09m
|
0.10m
|
0.10m
|
0.10m
|
0.10m
|
0.10m
|
Ground Clearance(Raised)
|
0.019m
|
0.019m
|
0.019m
|
0.019m
|
0.019m
|
0.019m
|
Wheelbase
|
1.36m
|
1.87m
|
1.87m
|
1.87m
|
1.87m
|
1.87m
|
Turning radius (inside)
|
0m
|
0m
|
0m
|
0m
|
0m
|
0m
|
Turning radius (outside)
|
1.64m
|
2.10m
|
2.10m
|
2.10m
|
2.10m
|
2.10m
|
Lift/Drive Motor
|
24V/3.3kw
|
24V/3.3kw
|
24V/3.3kw
|
24V/3.3kw
|
24V/3.3kw
|
24V/4.5kw
|
Travel Speed( Stowed)
|
3.0km/h
|
3.0km/h
|
3.0km/h
|
3.0km/h
|
3.0km/h
|
3.0km/h
|
Travel Speed( Raised)
|
1km/h
|
1km/h
|
1km/h
|
1km/h
|
1km/h
|
1km/h
|
Raise/Lower time
|
18/22sec
|
35/25sec
|
40/30sec
|
40/30sec
|
60/40sec
|
70/45sec
|
Power source
|
4*6V/210Ah
|
4*6V/225Ah
|
4*6V/225Ah
|
4*6V/225Ah
|
4*6V/240Ah
|
4*6V/260Ah
|
Charger
|
24V/30A
|
24V/30A
|
24V/30A
|
24V/30A
|
24V/30A
|
24V/30A
|
Gradeability
|
25%
|
25%
|
25%
|
25%
|
25%
|
25%
|
